7 Loft Apartment Style Plans

A loft apartment is not a studio apartment. Unlike a studio, which is a single room in a conventional building, a loft is a large, open space in a converted industrial building (former factory, warehouse, or garage). The defining features are high ceilings (3-5 m / 10-16 ft), large windows (often floor-to-ceiling or warehouse-style), exposed structure (brick walls, concrete floors, steel beams, ductwork), and an open plan (few interior walls). The challenge is zoning the large open space into living, dining, sleeping, and working areas without building full walls. The solution is furniture placement, partial walls, level changes, and strategic use of columns.

These 7 loft apartment style plans span open, mezzanine, split-level, corner, narrow, wide, and duplex configurations. Each includes defining characteristics, dimensional guidelines, and a prompt for visualization.

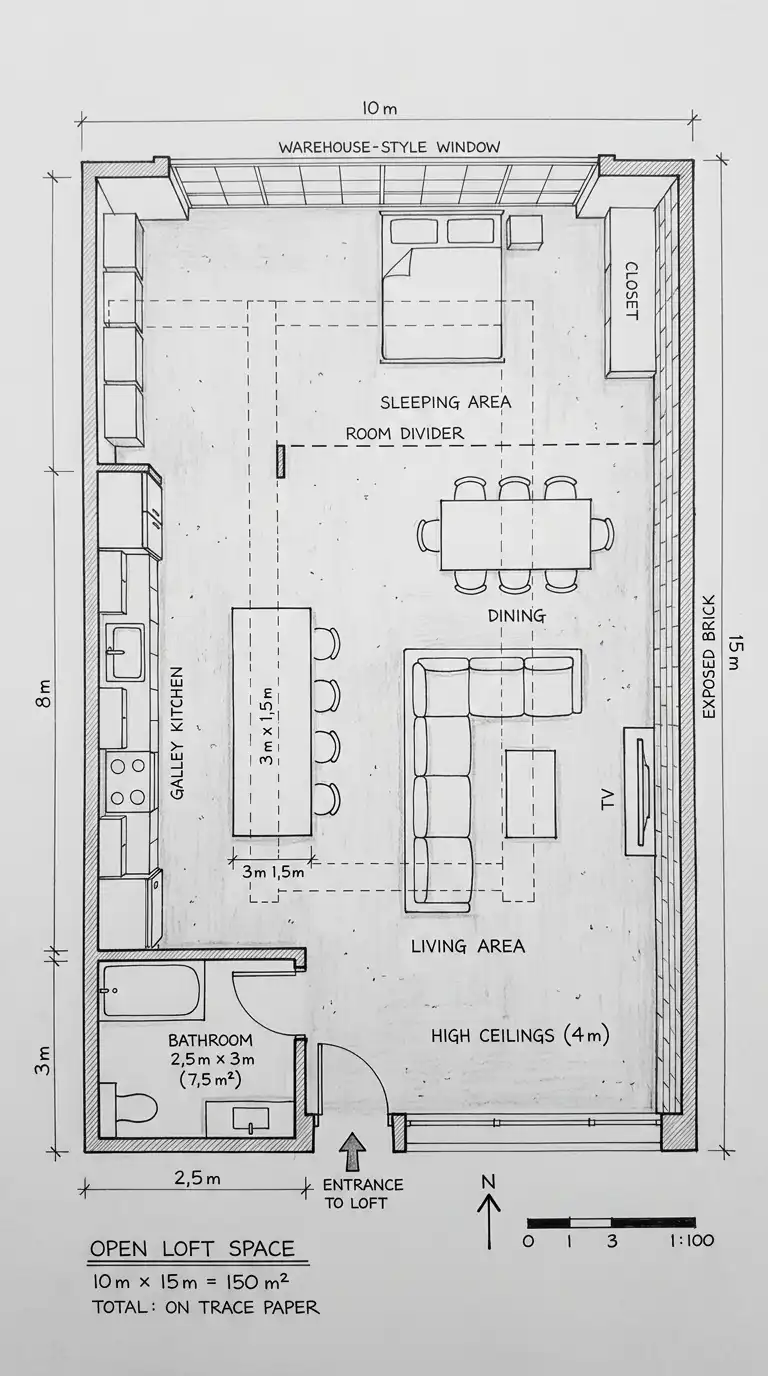

1. The Open Loft Plan (One Large Room, Zoned by Furniture)

An open loft has no interior walls (except the bathroom). The entire space is one large room. Zones are defined by furniture: a sofa defines the living area, a table defines the dining area, a bed defines the sleeping area, and a row of cabinets defines the kitchen. The open loft is the purest expression of loft living—flexible, raw, and dramatic. The challenge is making the sleeping area feel private (use a room divider or position the bed behind a column). This plan is for singles or couples who want maximum flexibility and an industrial aesthetic.

This plan is for singles or couples who want an industrial, flexible space. The emotional effect is open, raw, and flexible.

Quick Specs

• Area: 50-150 m² (540-1,600 sq ft).
• Ceiling height: 3-5 m (10-16 ft).
• Bathroom: the only enclosed room (4-6 m²).
• Kitchen: along one wall (galley or L-shaped).
• Sleeping area: separated by furniture or a room divider.

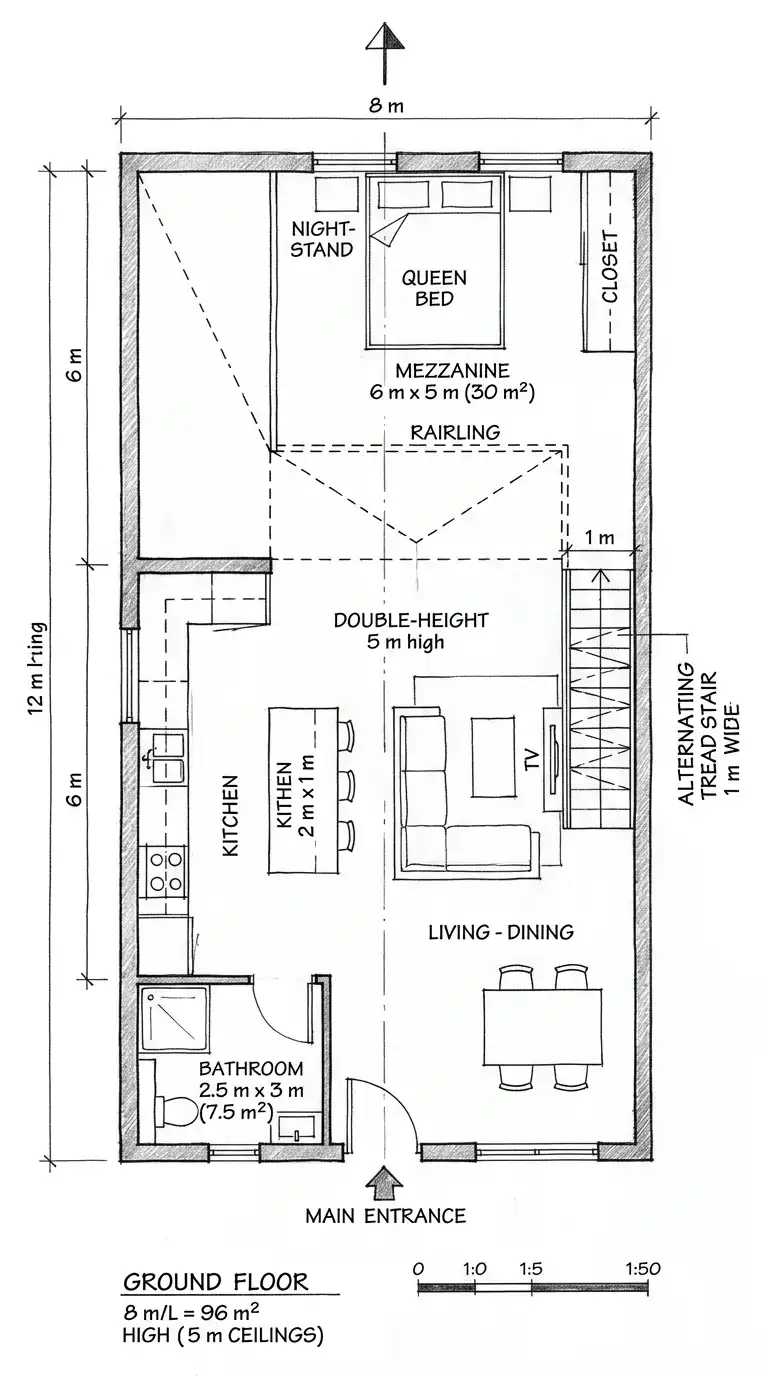

2. The Mezzanine Loft Plan (Bedroom Upstairs)

A mezzanine loft has a partial upper floor (mezzanine) above part of the space. The mezzanine is typically used as the bedroom (open to the living area below). The ground floor has the living-dining-kitchen. The mezzanine has the bed, open to below. The mezzanine creates a double-height living space (dramatic, spacious) while adding sleeping space above. The challenge is the headroom (the mezzanine needs 1.8-2.1 m headroom, so the ground floor needs 4.5-5.5 m total height). This plan is for singles or couples who want a dramatic, vertical space.

This plan is for singles or couples who want a dramatic, vertical loft. The emotional effect is double-height, dramatic, and space-maximizing.

Quick Specs

• Ground floor area: 60-100 m² (650-1,100 sq ft).
• Mezzanine area: 20-40 m² (215-430 sq ft).
• Ceiling height: 4.5-5.5 m (15-18 ft).
• Mezzanine headroom: 1.8-2.1 m (6-7 ft) at the peak.
• Stair: space-saving (alternating tread or ship’s ladder).

3. The Split-Level Loft Plan (Half-Floor Shifts)

A split-level loft has half-floor shifts. The entrance is on the main level. The living room is a few steps up. The kitchen and dining are on the same level as the living room or a few steps up. The bedroom is a few steps up from the kitchen. The split-level creates distinct zones without walls. The challenge is the stairs (multiple short runs) and the complex floor plan (overlapping levels). This plan is for lofts with varying ceiling heights or for clients who want separation without walls.

This plan is for clients who want separation without walls. The emotional effect is split-level, dynamic, and sectional.

Quick Specs

• Step height: 450-600 mm per half-level (3-4 risers).
• Levels: 3-4 half-levels (entry, living, kitchen, bedroom).
• Total area: 80-150 m² (860-1,600 sq ft).
• No long corridors (zones are stacked vertically).

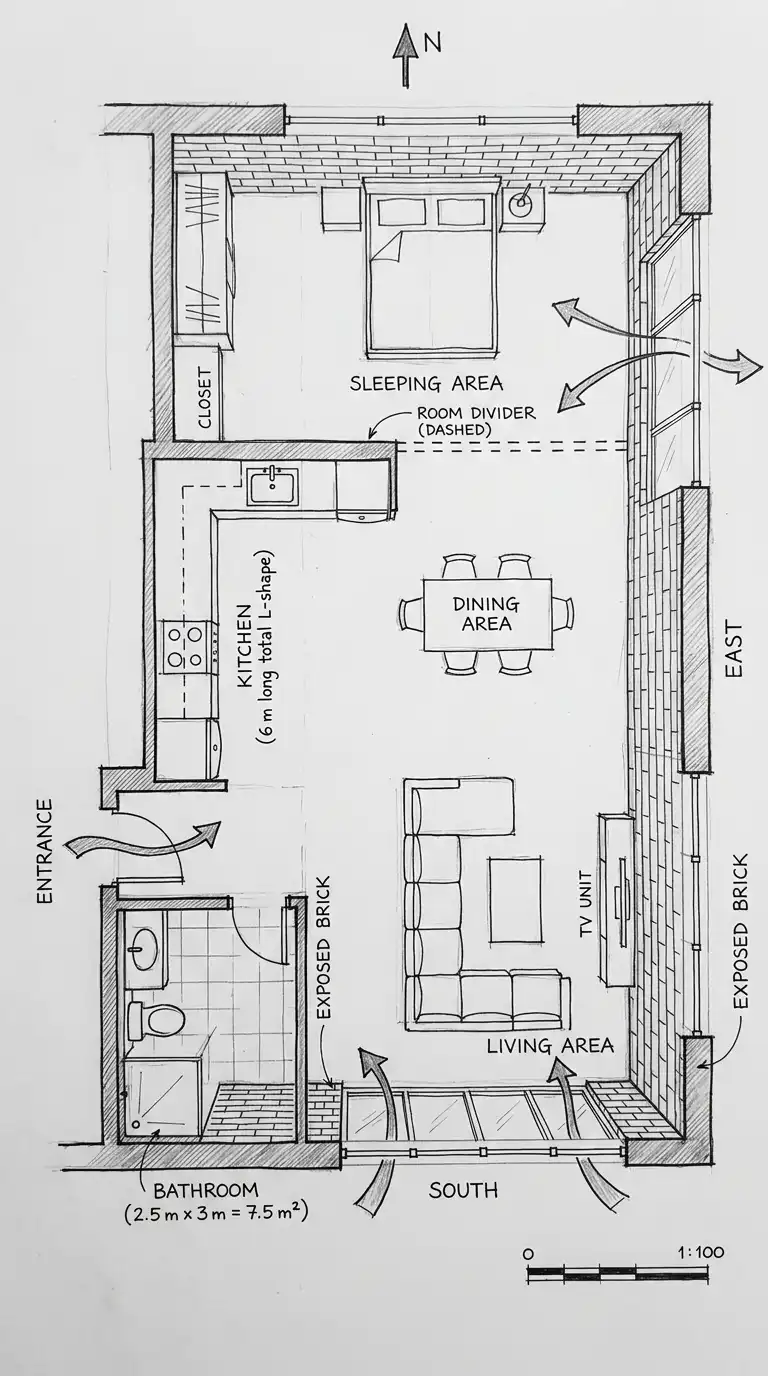

4. The Corner Loft Plan (Two Exposures, L-Shaped)

A corner loft is at the corner of a building, with windows on two perpendicular exterior walls. The two exposures bring in more light and allow for cross-ventilation. The living area is placed at the corner (with windows on both sides). The kitchen is along one wall. The bedroom is along the other wall (or in a mezzanine). The corner loft is the most desirable unit in a building. The challenge is arranging the furniture so the corner is not wasted (bathroom in the corner is a waste; living area in the corner is best). This plan is for corner units in loft buildings.

This plan is for corner units in loft buildings. The emotional effect is corner-oriented, light-filled, and airy.

Quick Specs

• Area: 70-120 m² (750-1,300 sq ft).
• Two exposures: north-south, east-west, or north-east, etc.
• Corner: living area at the corner (windows on both sides).
• Kitchen: along one wall (not in the corner).
• Bedroom: along the other wall or in a mezzanine.

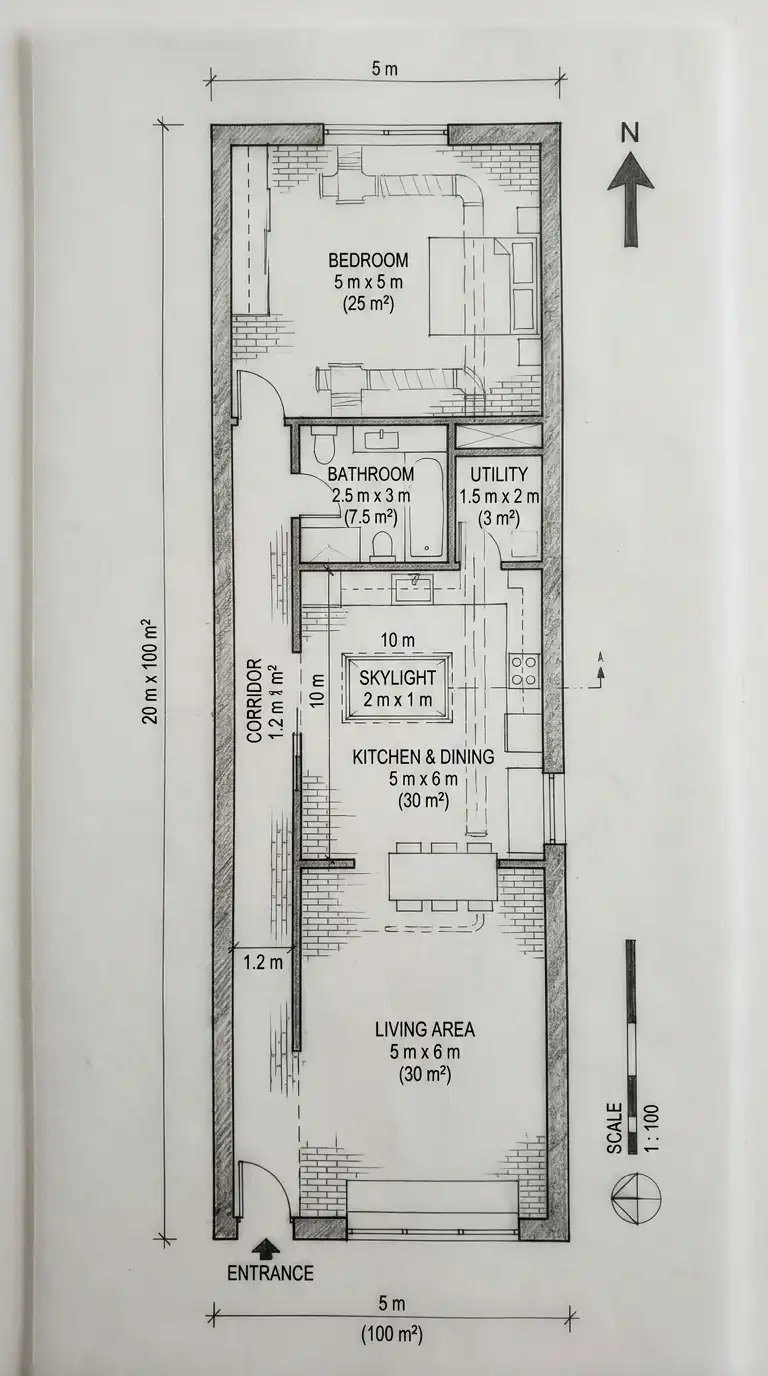

5. The Narrow Loft Plan (4-6 m Wide, Deep)

A narrow loft is in a long, narrow building (4-6 m wide, 15-25 m deep). The layout is linear: living area at the front (street), kitchen and dining in the middle, bedroom at the rear. A corridor runs along one side (or down the center). The narrow loft is common in converted row houses or narrow warehouses. The challenge is the long, dark corridor and the lack of natural light in the middle. Use a skylight or light well. This plan is for narrow buildings or row houses.

This plan is for narrow buildings or row houses. The emotional effect is narrow, linear, and efficient.

Quick Specs

• Width: 4-6 m (13-20 ft).
• Depth: 15-25 m (50-82 ft).
• Total area: 60-120 m² (650-1,300 sq ft).
• Living area: at the front (window).
• Kitchen-dining: in the middle.
• Bedroom: at the rear (window).
• Corridor width: 1.2-1.5 m.

6. The Wide Loft Plan (8-12 m Wide, Shallow)

A wide loft is in a wide building (8-12 m wide, 10-15 m deep). The layout is side-by-side: living area on one side, kitchen and dining on the other, bedroom at the rear (or on a mezzanine). The wide loft has more natural light (windows on one long wall). The challenge is the large width (8-12 m) – the far wall may be far from the window. Use a mezzanine or split-level to add interest. This plan is for wide loft buildings (former factories, warehouses).

This plan is for wide loft buildings (former factories, warehouses). The emotional effect is wide, open, and side-by-side.

Quick Specs

• Width: 8-12 m (26-40 ft).
• Depth: 10-15 m (33-50 ft).
• Total area: 80-150 m² (860-1,600 sq ft).
• Living area: on one side.
• Kitchen-dining: on the other side (open).
• Bedroom: at the rear or on a mezzanine.

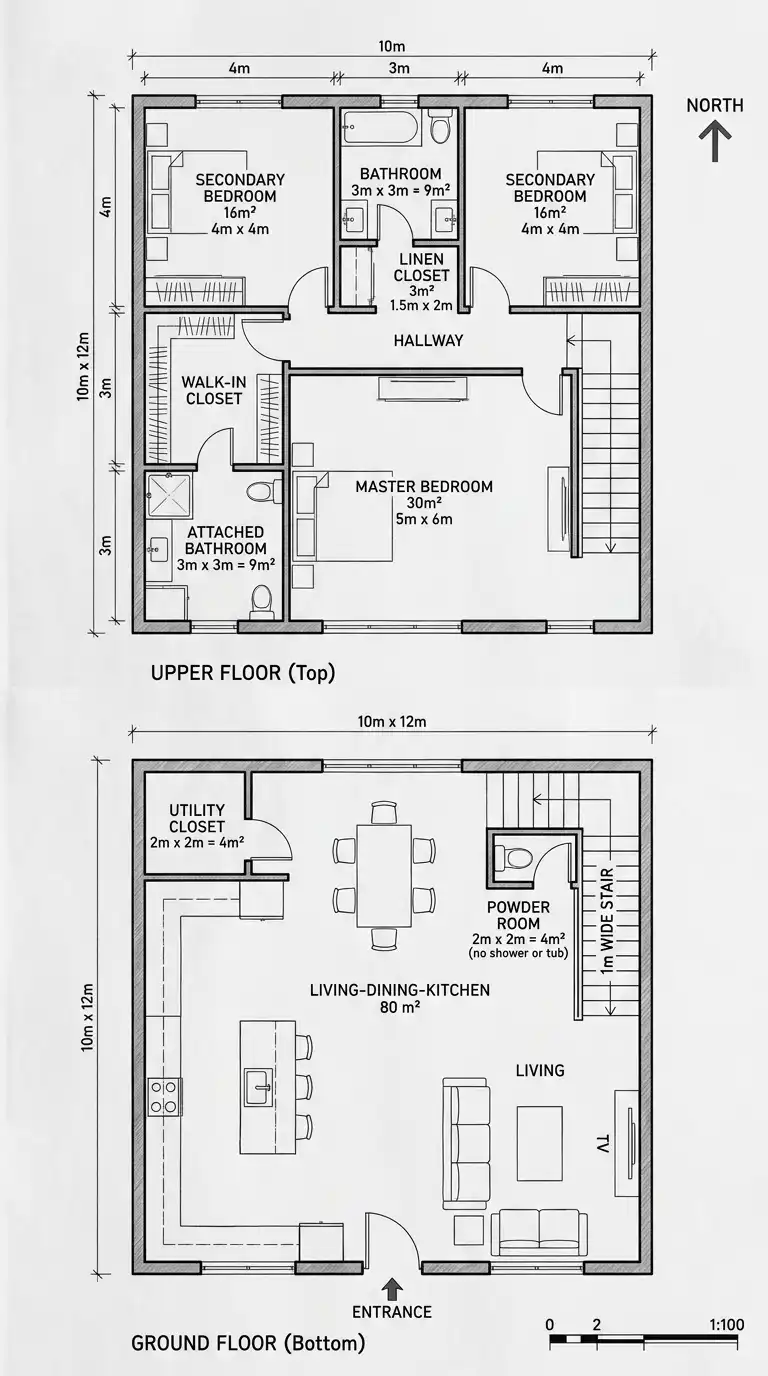

7. The Duplex Loft Plan (Two Floors, Private Stair)

A duplex loft has two floors (ground floor and upper floor) connected by a private stair. The ground floor has the living-dining-kitchen and a powder room. The upper floor has the bedrooms and bathrooms. The duplex loft is like a two-story apartment within a loft building. It offers separation of public and private spaces. The challenge is the stair (takes floor space, not accessible) and the upper floor layout (must fit within the footprint). This plan is for large loft spaces (120-200 m²) or for clients who want a house-like loft.

This plan is for large loft spaces or clients who want a house-like loft. The emotional effect is duplex, private, and house-like.

Quick Specs

• Ground floor area: 60-100 m² (650-1,100 sq ft).
• Upper floor area: 60-100 m² (650-1,100 sq ft).
• Total area: 120-200 m² (1,300-2,150 sq ft).
• Ground floor: living-dining-kitchen, powder room.
• Upper floor: 2-3 bedrooms, 1-2 bathrooms.
• Stair width: 0.9-1.2 m.

Comparison Summary

Loft Plan	Key Feature	Area (m²)	Ceiling Height	Best For
Open	One large room, no walls	50-150	3-5 m	Singles, couples, flexible
Mezzanine	Bedroom on partial upper floor	80-140	4.5-5.5 m	Drama, vertical space
Split-Level	Half-floor shifts	80-150	Varies	Dynamic spaces
Corner	Two exposures, L-shaped	70-120	3-5 m	Light, views
Narrow	4-6 m wide, linear	60-120	3-5 m	Row houses, narrow buildings
Wide	8-12 m wide, side-by-side	80-150	3-5 m	Wide lofts
Duplex	Two floors, private stair	120-200	3-5 m	House-like, privacy

Conclusion

A loft apartment plan is a plan for an industrial space transformed into a home. Unlike a conventional apartment, where rooms are enclosed by walls, a loft is open, raw, and flexible. The challenge is not building walls—it is using furniture, level changes, and strategic placement to define zones without losing the open, airy feel.

The seven loft plans presented here offer different strategies for different building shapes and different lifestyles.

The Open Loft Plan says: one room, no walls, total flexibility. This is for singles or couples who want an industrial, raw aesthetic.

The Mezzanine Loft Plan says: go up. A mezzanine bedroom creates a dramatic double-height living space. This is for clients who want drama and vertical space.

The Split-Level Loft Plan says: use level changes to separate zones. This is for lofts with varying ceiling heights or for clients who want separation without walls.

The Corner Loft Plan says: take advantage of two exposures. The corner has the best light. This is for corner units.

The Narrow Loft Plan says: work with a long, narrow space. This is for converted row houses.

The Wide Loft Plan says: spread out side by side. This is for wide loft buildings.

The Duplex Loft Plan says: two floors, house-like. This is for clients who want separation between public and private.

When designing a loft apartment plan, ask: What are the existing features? Exposed brick, concrete floors, steel columns, large windows, and high ceilings are the assets of a loft. Work with them—don’t cover them up.

Ask: What is the ceiling height? A 3 m ceiling is standard. A 4-5 m ceiling allows a mezzanine. A 5+ m ceiling allows a double-height space. The ceiling height determines what is possible.

Ask: Where is the light? Lofts have large windows—often on one end or on two sides (corner). Place the living area near the windows. Place the sleeping area away from the windows (or use a room divider).

Ask: What is the structure? Steel columns are structural. Do not remove them—use them as design features. Place the kitchen island between two columns, or use a column as a room divider.

Ask: What is the budget? A raw loft (unfinished) is less expensive but requires more work (floors, walls, kitchen, bathroom). A finished loft is more expensive but move-in ready. The plan must match the budget.

The best loft apartment plan is not the one with the most square footage or the highest ceiling. It is the one where the morning light hits the kitchen, where the bed is tucked behind a column, where the exposed brick is visible, where the concrete floor is polished, and where the space feels industrial but also like home. It is a plan for urban living.
